• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1962–1964

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 25039

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF86 ECC81 EL95 EM84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

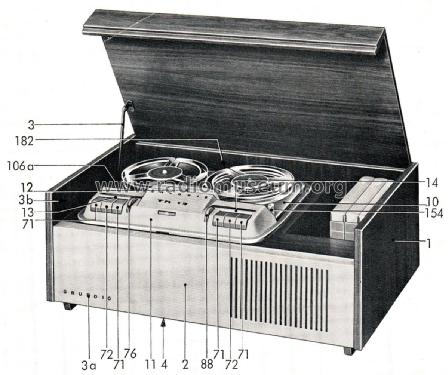

• Model: TS19 [Nussbaum] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 540 x 210 x 330 mm / 21.3 x 8.3 x 13 inch

• Notes
• Zweispur; 9,5 cm/s, Spulen-Ø 15 cm. Technische Daten wie TK19.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 530.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964
