• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1989 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 133294

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

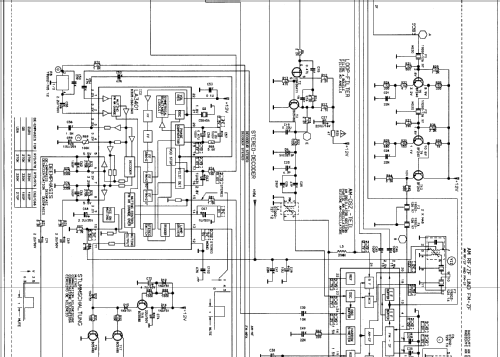

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 28

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Tuner T 5200 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 360 x 85 x 290 mm / 14.2 x 3.3 x 11.4 inch

• Notes
• 4 ICs.

• Net weight (2.2 lb = 1 kg)
• 3.750 kg / 8 lb 4.2 oz (8.26 lb)

• Mentioned in

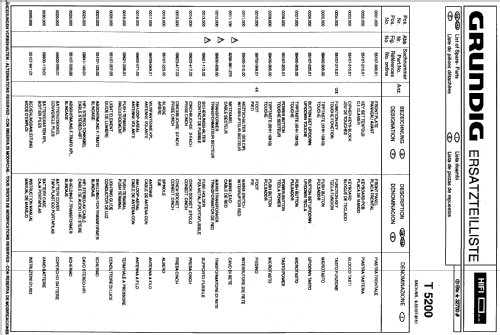

• Original Grundig Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
