• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1987 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 171658

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

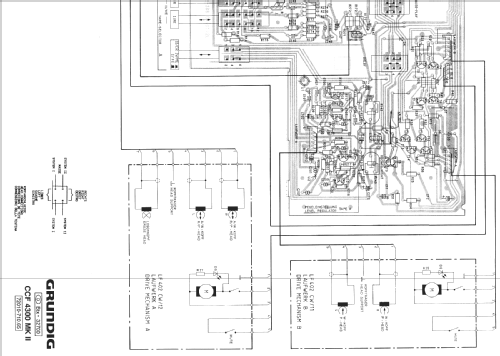

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Twin Cassette Deck CCF4300 MK II - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 120 x 225 mm / 17.1 x 4.7 x 8.9 inch

• Notes
• Twin Cassette Deck CCF4300 MK II,Dolby System, Doppel-Frontlader mit Soft-Touch-Bedienung, Deck A für Wiedergabe, Deck B für Aufnahme und Wiedergabe, Dubbing, manuelle Aussteuerung, Autoplay, Intermix-Bedienung möglich, 3-stelliges Bandlängenlaufwerk für Deck B, Mikrofonanschluß, Cassettenschacht-Beleuchtung, Spannungsversorgung aus Verstärker V4200 oder 220 V (ext. Netzgerät).

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
