Twin Cassette Deck CCF5500
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1992 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 200320
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

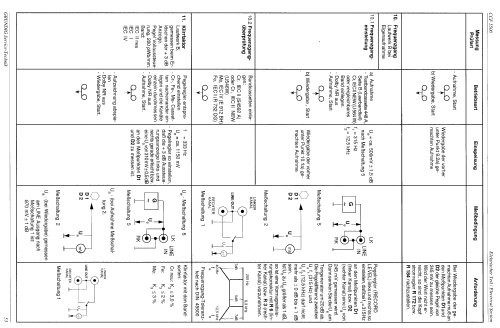

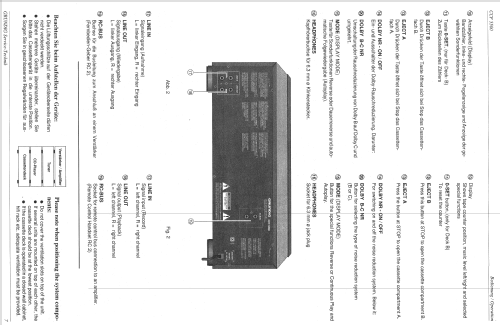

Q: Grundig, Service-Unterlagen
Q: Grundig, Service-Unterlagen
Q: Grundig, Service-Unterlagen

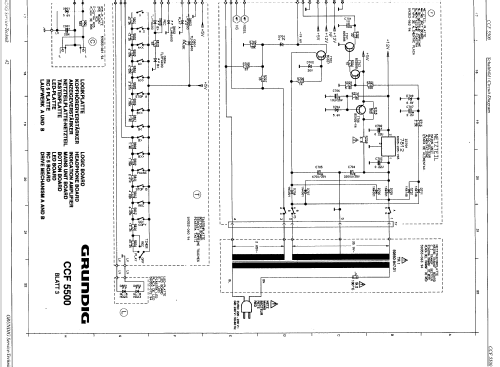

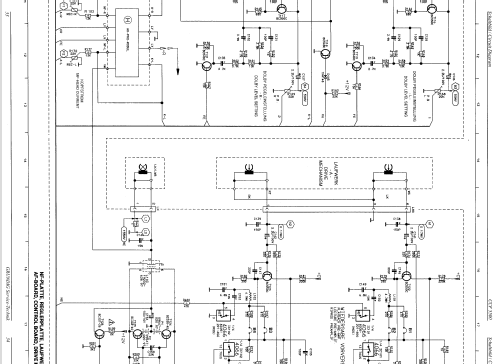

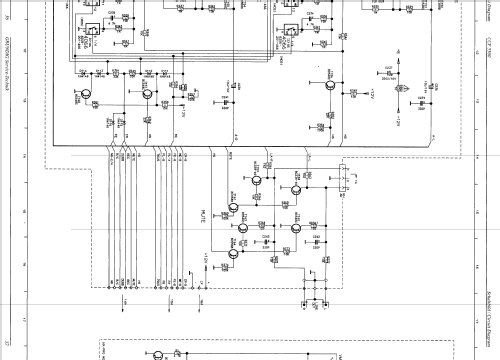

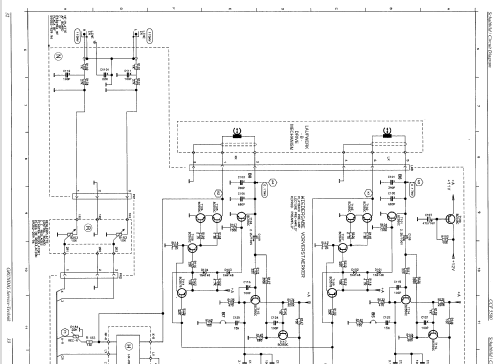

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 86
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player; Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220-230 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Twin Cassette Deck CCF5500 - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 360 x 110 x 290 mm / 14.2 x 4.3 x 11.4 inch
- Notes
- Bandgeschwindigkeit: 4,76 cm/sec.
Frequenzbereich: Cr, Me, Fe: 30 Hz...16 kHz.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
