UHF Einbausatz 10 7657-020
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1960
- Category
- Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
- Radiomuseum.org ID
- 238949
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

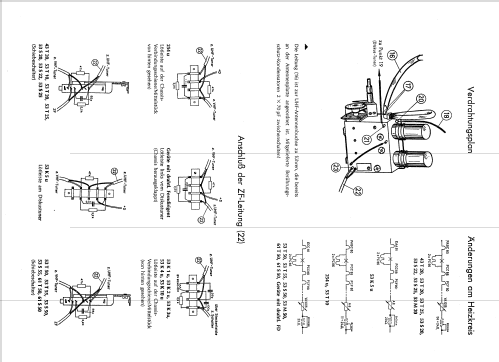

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- RF Converter/Adapter (not voltage converter); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Powered by external power supply or a main unit. / AC 7,6 & DC 190 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: UHF Einbausatz 10 7657-020 - Grundig Radio-Vertrieb, RVF,
- Shape
- Chassis only or for «building in»
- Notes
-
UHF-Nachrüsttuner zum Einbau in Grundig Fernsehgeräte der Saison 1960/61,
wie z.B. Zauberspiegel 53T20 und 53T25.
- Mentioned in
- Grundig Technische Informationen Nov. 1960
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Holger Ortmann. See "Data change" for further contributors.
