• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1973

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 90940

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

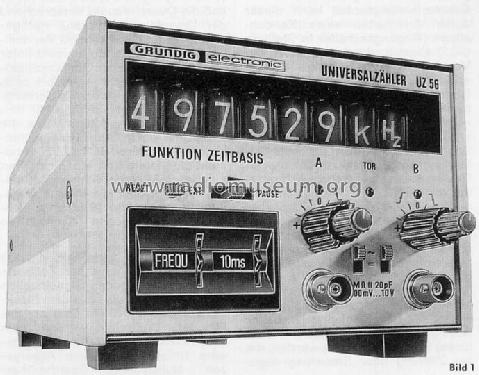

• Model: Universalzähler UZ56 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 140 x 120 x 270 mm / 5.5 x 4.7 x 10.6 inch

• Notes
• 50-MHz-Zähler mit Nixieröhrenanzeige, zulässige Eingangsspannung 100 V_eff.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Mentioned in

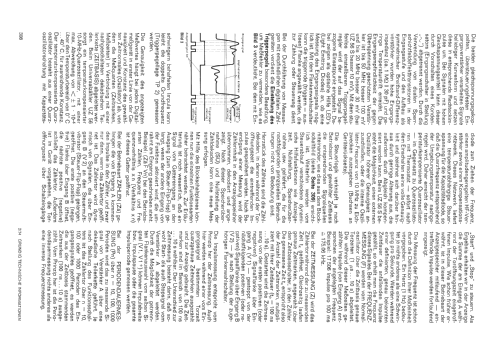

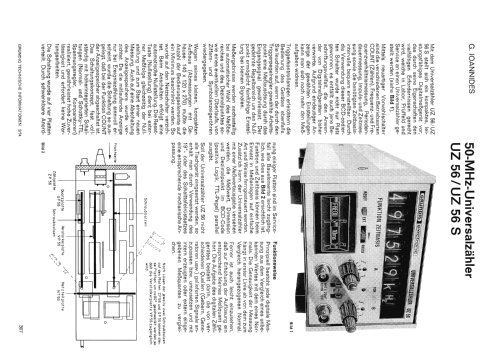

• Grundig Technische Informationen 2/1974

• Author
• Model page created by a member from A. See "Data change" for further contributors.
