Video Recorder GV 400 VPS

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1993 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 232723

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

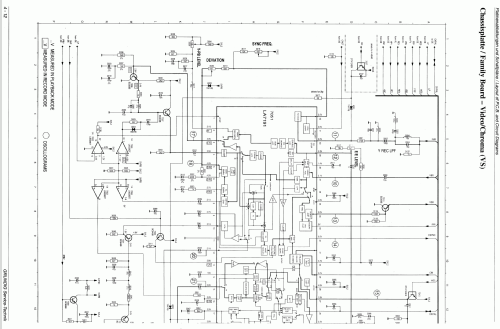

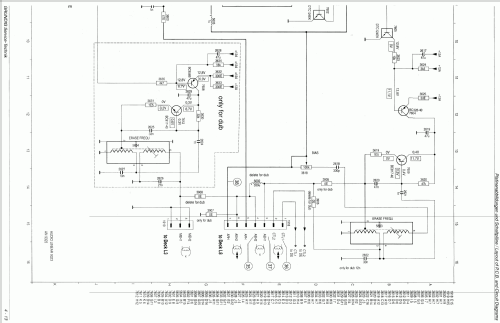

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Video-Taperecorder/-Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Video Recorder GV 400 VPS - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 435 x 100 x 370 mm / 17.1 x 3.9 x 14.6 inch

• Notes

• Grundig GV 400 VPS Standard 2-Kopf Videorecorder

  Technische Daten und Ausstattung:

  • Fernseh-Norm: CCIR B/G - PAL / SECAM
  • Empfangsteil: VHF/UHF
  • Zeitgesteuerte Aufnahmen mit VPS-Funktion
  • Testbildfunktion
  • einstellbarer Kanal: 30...40
  • 2 Scart Buchsen

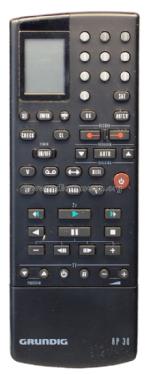

  • Fernbedienung: RP30

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Author
• Model page created by Jürgen Küting. See "Data change" for further contributors.
