VW Beta 4 G.HF63-00 / G.HG67-00 - VW 3B0 035 152
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1995 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 227658
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 40 W (max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: VW Beta 4 G.HF63-00 / G.HG67-00 - VW 3B0 035 152 - Grundig Radio-Vertrieb, RVF,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 190 x 58 x 175 mm / 7.5 x 2.3 x 6.9 inch
- Notes
-

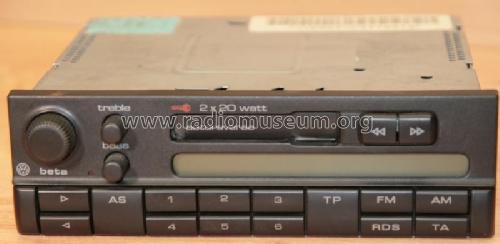

VW Beta 4 3B0 035 152, MW/UKW Autoradio mit Autostore, RDS (Radio Data System) für Anzeige von Sendername, TP (Traffic Program) und TA (Traffic Announcement). Cassettenteil mit Autoreverse. Hergestellt von Grundig Portugal für Volkswagen AG.
- Net weight (2.2 lb = 1 kg)
- 1.620 kg / 3 lb 9.1 oz (3.568 lb)
- Author
- Model page created by Wolfgang Müllner. See "Data change" for further contributors.
