Weltklang WKC2015VD

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1977/1978

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 125562

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

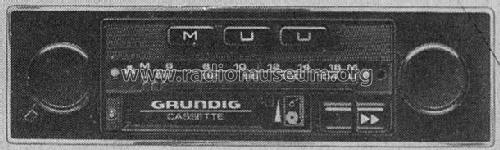

• Picture

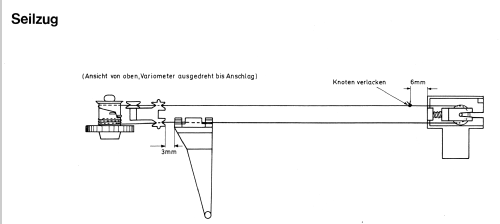

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Weltklang WKC2015VD - Grundig Radio-Vertrieb, RVF,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 175 x 44 x 135 mm / 6.9 x 1.7 x 5.3 inch

• Notes
• ICs: 7.
  Eingebauter Verkehrsfunk-Decoder.

• Net weight (2.2 lb = 1 kg)
• 1.650 kg / 3 lb 10.1 oz (3.634 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
