• Year
  • 1977/1978
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 125566
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org

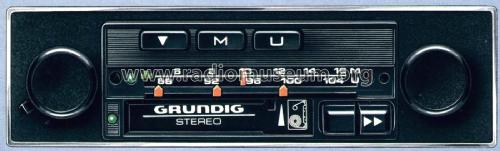

  • Model: Weltklang WKC2035 Stereo - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 175 x 44 x 133 mm / 6.9 x 1.7 x 5.2 inch
  • Notes
  • ICs: 8.
    Ausgangsleistung: 2× 5 W.
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
