• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1986

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 127235

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 57

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 28 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

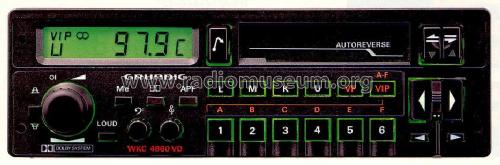

• Model: WKC4860VD - Grundig Radio-Vertrieb, RVF,

• Shape
• Chassis only or for «building in»

• Notes
• Autoradio mit digitalem PLL-Tuner, 30 Speicher, Verkehrsfunk ARI und VIP (sucht automatisch den stärksten Verkehrsfunksender einer Kette, Kennbuchstabe kann eingegeben werden).
  Autoreverse-Stereocassettendeck. Fe / Cr / Me-Cassetten, Dolby B.
  Ausgangsleistung 4 x 7 Watt Sinus, 4 x 14 Watt Musik.

• Source of data
• -- Original prospect or advert

• Mentioned in
• Funkschau (5/1986, S. 32, 33 /Verkehrsfunk-Empfang mit Frequenzdiversity)

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
