• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1987 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 303214

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

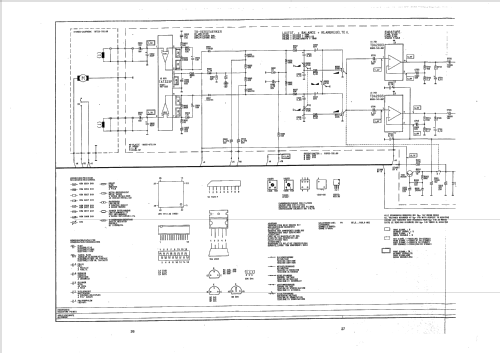

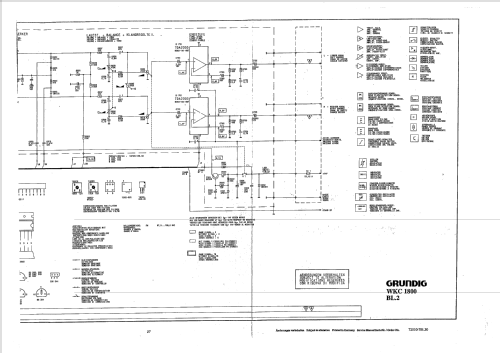

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors
• 2SK544 BC549 BC549 BC338 BC548 BF441 BF451 2SK544 BF241 BC548 BC548 BC548 BC548 BC548 BC558 LA1140 BF241 LA2110 LA3375 TA7325 TDA2003 TDA2003 BC558

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

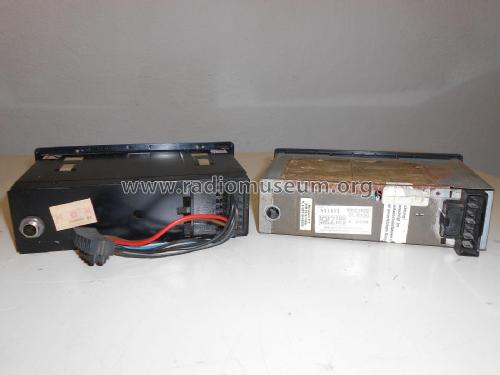

• Model: WKC 1800 - Grundig Radio-Vertrieb, RVF,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 175 x 45 x 120 mm / 6.9 x 1.8 x 4.7 inch

• Notes

• 5 Stationstasten. PLL-Frequenz-Synthesizer. LC-Display. Stereo-Cassettenlaufwerk.

  Siehe auch WKC 1800 VD mit Verkehrsfunk-Decoder.

  Made in Portugal.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
