WKC 2040 VD
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1984
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 131874
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

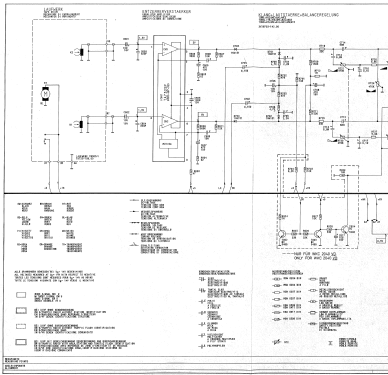

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 7 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: WKC 2040 VD - Grundig Radio-Vertrieb, RVF,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 179 x 51 x 149 mm / 7 x 2 x 5.9 inch
- Notes
- Der Autoempfänger WKC 2040VD enthält ein Kassettenlaufwerk und einen Verkehrsfunkdecoder.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
