• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1983

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 131871

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

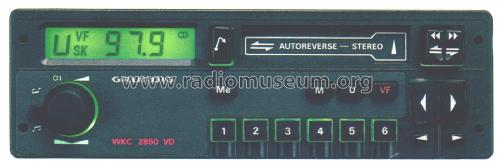

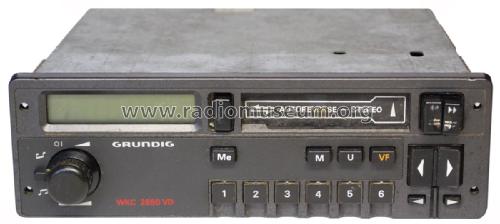

• Model: WKC 2850 VD - Grundig Radio-Vertrieb, RVF,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 179 x 51 x 149 mm / 7 x 2 x 5.9 inch

• Notes

• SDK, 2-4 Lautsprecher, 30-16 000 Hz. FM-Stereo, 6 Programmtasten.

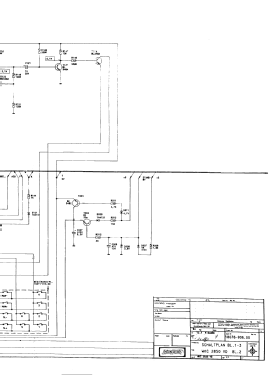

  Schaltplan BL.1 und BL.3 fehlen

  Made in Portugal

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
