HiFi-Studio XPC6500TP

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 235037

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

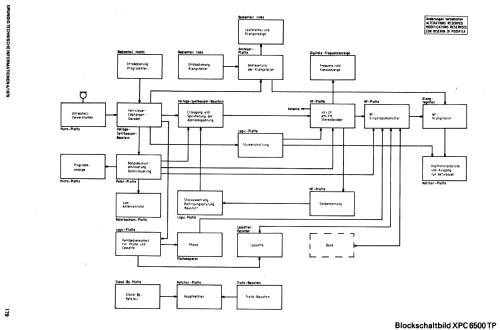

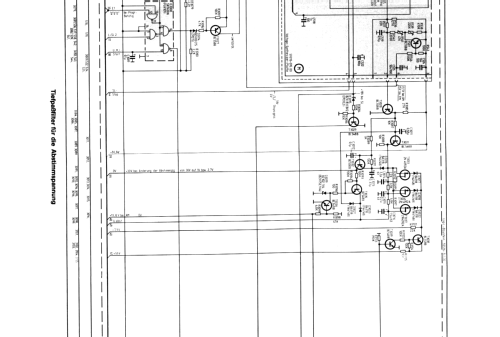

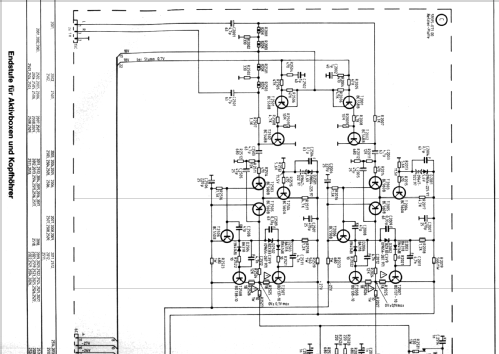

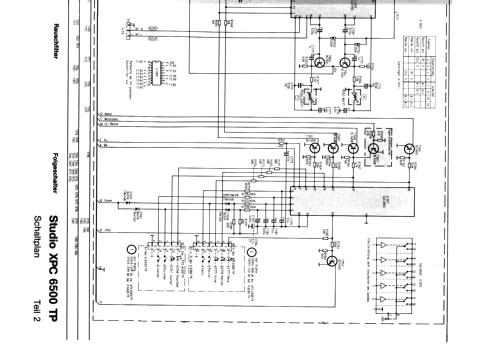

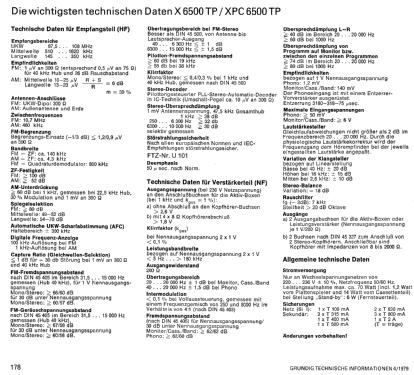

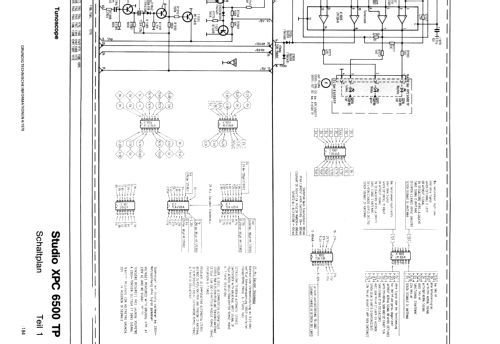

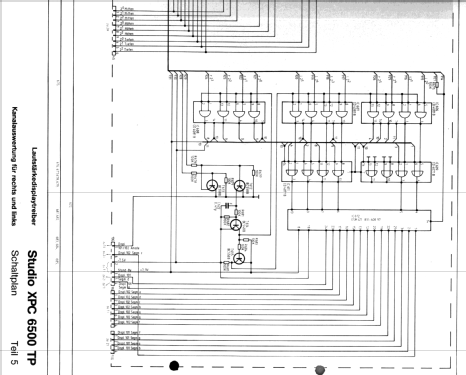

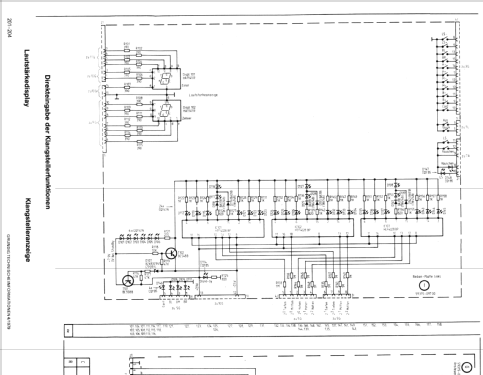

• Schematics

Previous Next

Previous Next

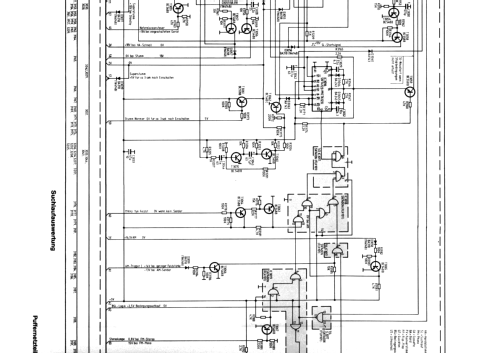

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220...230 & for back-up 1 x 1,5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: HiFi-Studio XPC6500TP - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• Compact-Anlage HiFi-Studio XPC6500TP mit Rundfunk-Empfangsteil, fernbedienbarer Cassetten-Recorder CB230TP und  fernbedienbarer DUAL-Plattenspieler 491A-RC.

  Sämtliche Anzeigen über LED; je 10 Speicherplätze für LW, MW und UKW, zusätzlich 1,5-V-Batterie für Sendespeicher erforderlich; benötigt Aktivboxen, NF-Ausgang 1 V/200 Ohm; Ultraschall Fernbedienung TP6500.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• - - Manufacturers Literature (Grundig Technische Informationen 4/1979)

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
