Yacht-Boy 1100

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1975–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73945

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

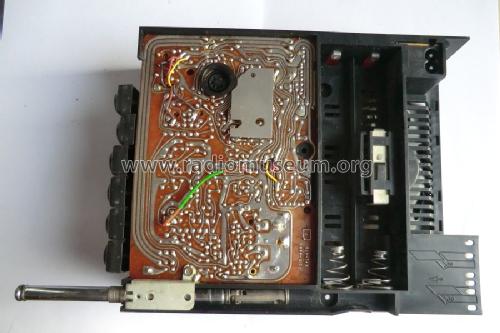

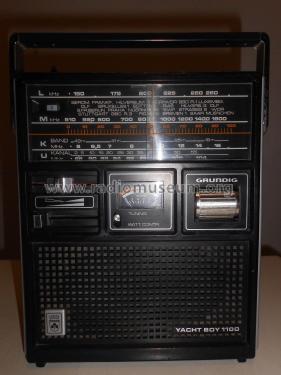

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BF314 BF241 BF240 BC239 BC338 BC328 GD361 GD362 AA112 AA143 BZ102 ZW9,1

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-230 / C: 5 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (3.5 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Yacht-Boy 1100 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 235 x 70 mm / 7.9 x 9.3 x 2.8 inch

• Notes

• Output with battery: 1.5 W, if connected to mains 230 V 3.5 W music power.
  FM/UKW: 88 - 104 MHz with AFC non-excludable.
  SW: 19 to 51 m.
  Oval speaker: 15,5 x 9,5 cm. Ferrite 16 cm.
  On/off and phono buttons.  2 sliding controls for volume and tone.
  Instrument for tuning and battery check and 120 minute timer for automatic on/off.
  Automatic switching mains/battery. Batteries: type "C" (also known as "LR 14" or "Baby").
  Connections for headphone/outdoor speaker and record player/tape recorder.

  Semiconductors listed once per type.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 198.00 DM

• Source of data
• Handbuch VDRG 1977/1978

• Mentioned in
• Handbuch RFP 1967/77 S. 323 (Datentabelle Reisesuper)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Taxliste Franzis Verlag (26. Ausgabe 1978/79)

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
