• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1981

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127173

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

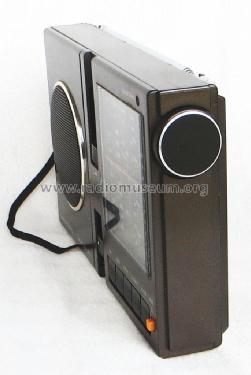

• Model: Yacht-Boy 200 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 140 x 40 mm / 9.1 x 5.5 x 1.6 inch

• Notes
• Reiseradio, Kurzwellenbereiche 49 m Band und 41-16 m Band, Tuning - LED.

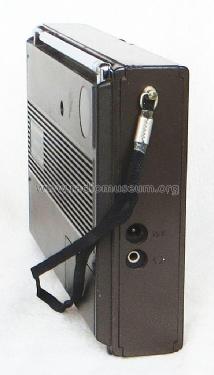

  Varianten: Gehäuse metallic (silber) und braun. Das Gerät enthält 1 IC UPC1018C und hat einen Kopfhöreranschluß und eine Buchse für ein externes Netzteil.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
