Yacht-Boy 220

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1986

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 92135

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

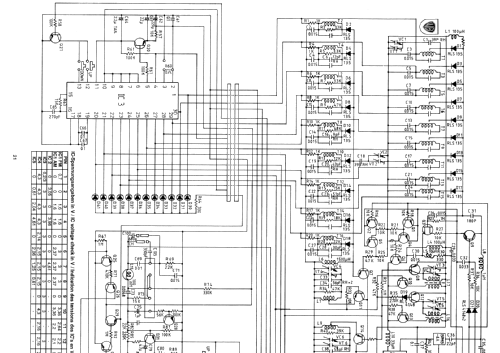

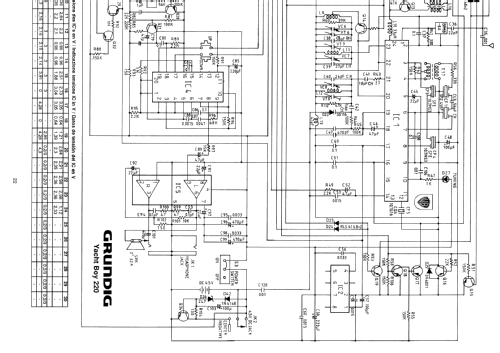

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 27

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700/455 kHz

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Dry Batteries / 3 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Yacht-Boy 220 - Grundig Radio-Vertrieb, RVF,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 140 x 90 x 35 mm / 5.5 x 3.5 x 1.4 inch

• Notes
• Frequenzbereiche:
  UKW: 87,5 - 108 MHz
  MW: 515 - 1630 kHz
  LW: 140 - 290 kHz
  KW: 9 Bänder 3,9 - 21,85 MHz. , Anschluß für ext. Netzgerät (DC 4,5Volt) Tonblendenschalter mit 3 Stellungen

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Price in first year of sale
• 178.00 DM

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
