Zauberspiegel 235

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1956/1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 21069

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

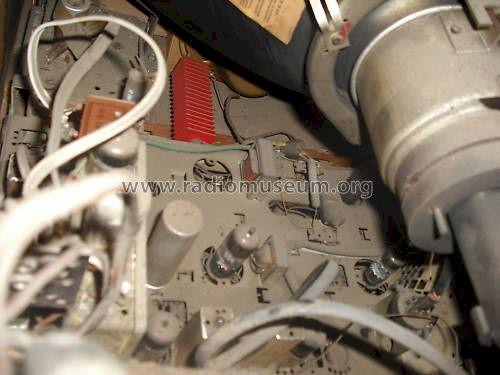

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• EC92 PCF80 EF80 EF80 EF80 PCL82 EF80 PABC80 PL82 EF80 EC92 PL81 PY83 DY80 MW43-69

• Number of Transistors

• Semiconductors
• OA160 E62,5C2 E62,5C2 E220C250

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel 235 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 495 x 480 x 470 mm / 19.5 x 18.9 x 18.5 inch

• Notes

• VHF-Band I & III.

  Anschluss für Kabelfernbedienung: Fernregler für Helligkeit und Lautstärke.

• Net weight (2.2 lb = 1 kg)
• 34 kg / 74 lb 14.2 oz (74.89 lb)

• Price in first year of sale
• 698.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57

• Literature/Schematics (1)
• -- Original-techn. papers.
