• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1959/1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 101182

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC88 PCF80 EF80 EF80 PABC80 PL82 EF80 EF80 EF80 PCL84 EF80 PCL82 PC92 PL36 PY88 DY86 AW43-88

• Number of Transistors

• Semiconductors
• OA81 OA81 OA160 E62,5C5 E62,5C5 OA81 E220C300

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel 243 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 435 x 375 x 350 mm / 17.1 x 14.8 x 13.8 inch

• Notes

• VHF; vorbereitet für UHF-Einbauteil. Mit "Magnetomatic" Scharfabstimmung.

  Anschluss für Kabelfernbedienung: Fernregler II (2) für Helligkeit und Lautstärke.

• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Price in first year of sale
• 745.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Mentioned in

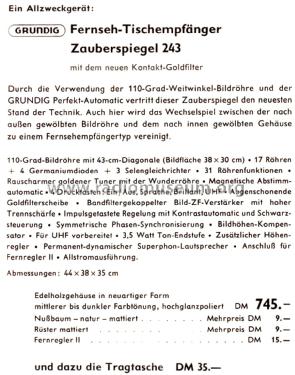

• - - Manufacturers Literature (Grundig-Katalog, FS-Geräte 1959)

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
