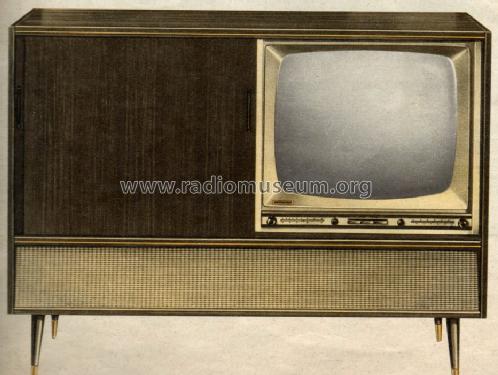

Zauberspiegel 300K20 Rfk Ch= HF50
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1963/1964
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 108328
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

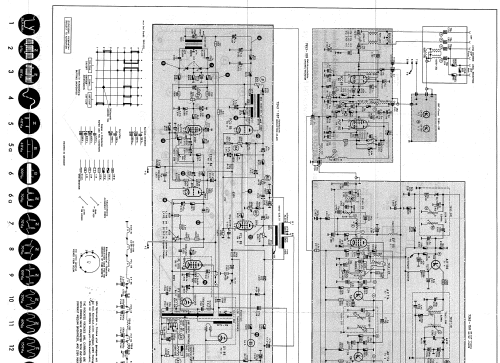

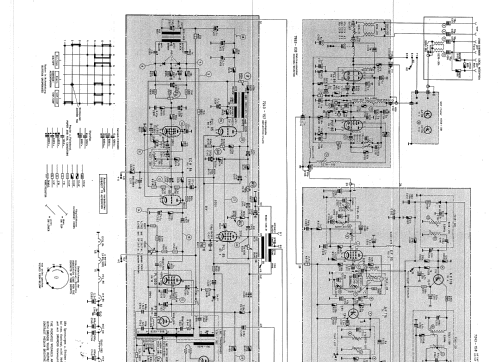

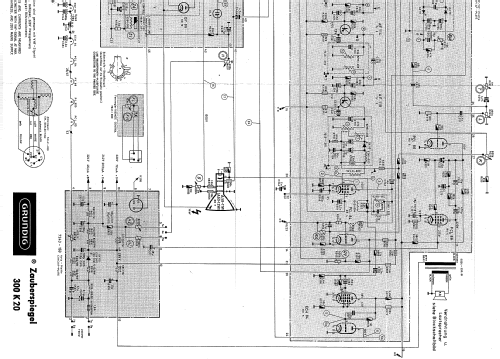

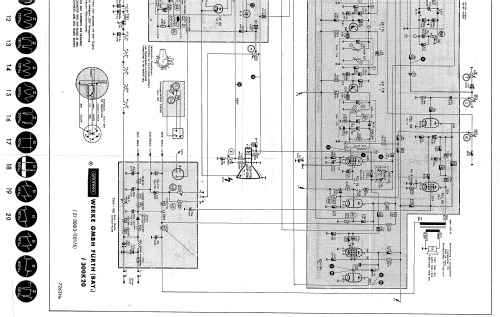

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer); Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Zauberspiegel 300K20 Rfk Ch= HF50 - Grundig Radio-Vertrieb, RVF,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1250 x 920 x 410 mm / 49.2 x 36.2 x 16.1 inch
- Notes
- Fernseh-Chassis = Zauberspiegel T300;
Rundfunk-Chassis = HF50 und Stereo-NF-Verstärker mit 2 Endstufen je 3 W;
Phono-Chassis = Philips AG1025. Stereo-Decoder 4 oder 5 nachrüstbar.
- Net weight (2.2 lb = 1 kg)
- 80 kg / 176 lb 3.4 oz (176.211 lb)
- Price in first year of sale
- 2,137.00 DM
- Source of data
- Handbuch VDRG 1963/1964
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
