• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1963/1964

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 108342

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

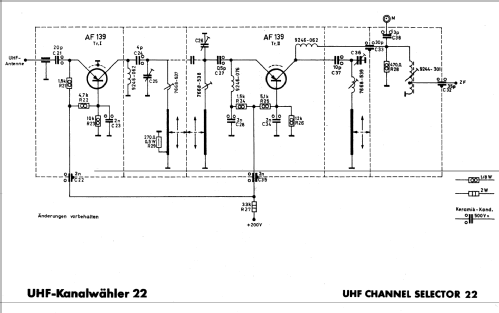

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• A59-16W

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel 300K50 wie TV T320 Rfk= HF20 + NF1 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1620 x 830 x 470 mm / 63.8 x 32.7 x 18.5 inch

• Notes

• Fernseh-Chassis = Zauberspiegel T320, jedoch ohne Ton-Endstufe (Endverstärkung) HiFi-Stereo-Verstärker = NF1,
  Rundfunk-Chassis = HF20,
  Phono-Chassis = Dual 1008,
  Stereo-Decoder 4 oder Stereo-Automatic-Decoder 5 nachrüstbar.

• Net weight (2.2 lb = 1 kg)
• 85 kg / 187 lb 3.6 oz (187.225 lb)

• Price in first year of sale
• 2,925.00 DM

• Source of data
• Handbuch VDRG 1963/1964

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
