• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1958/1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 100711

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

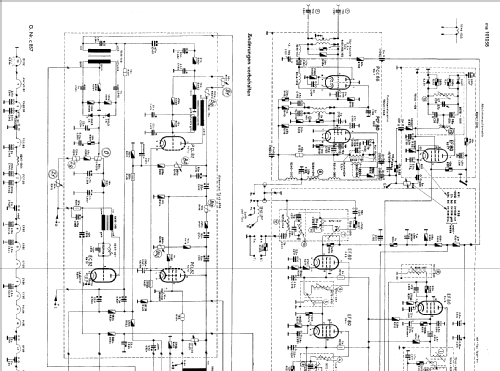

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• AW43-80 PCC88 PCF80 EF80 EF80 PABC80 PL82 EF80 EF80 EF80 PCL84 EF80 PCL82 EC92 PL81 PY83 DY86

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel 339 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 430 x 410 mm / 19.7 x 16.9 x 16.1 inch

• Net weight (2.2 lb = 1 kg)
• 23.5 kg / 51 lb 12.2 oz (51.762 lb)

• Price in first year of sale
• 825.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
