Zauberspiegel 437/p (437P)

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Year
1958 ??

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
75853

- alternative name: Grundig Portugal || Grundig USA / Lextronix

Schematics

Zauberspiegel 437/p ; Grundig Radio- (ID = 341839) Television — Grundig Radio- Zauberspiegel 437/p (3)

Zauberspiegel 437/p ; Grundig Radio- (ID = 341840) Television — Grundig Radio- Zauberspiegel 437/p (3)

Zauberspiegel 437/p ; Grundig Radio- (ID = 652822) Television — Grundig Radio- Zauberspiegel 437/p (3)

Zauberspiegel 437/p ; Grundig Radio- (ID = 652823) Television — Grundig Radio- Zauberspiegel 437/p (3)

Zauberspiegel 437/p ; Grundig Radio- (ID = 652824) Television — Grundig Radio- Zauberspiegel 437/p (3)

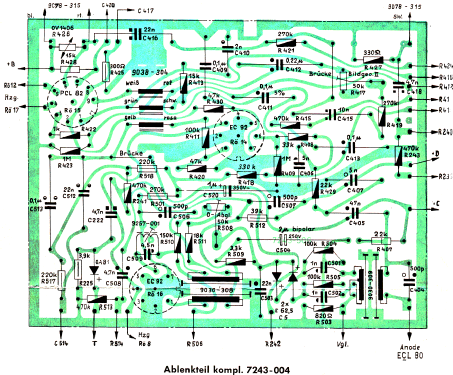

Zauberspiegel 437/p ; Grundig Radio- (ID = 652825) Television — Grundig Radio- Zauberspiegel 437/p (3)

Zauberspiegel 437/p ; Grundig Radio- (ID = 93346) Television — Grundig Radio- Zauberspiegel 437/p (3)
Teil 1 des Schaltbildes

Zauberspiegel 437/p ; Grundig Radio- (ID = 93347) Television — Grundig Radio- Zauberspiegel 437/p (3)
Teil 2 des Schaltbildes

Zauberspiegel 437/p ; Grundig Radio- (ID = 93348) Television — Grundig Radio- Zauberspiegel 437/p (3)
Die Oszilogramme

Zauberspiegel 437/p ; Grundig Radio- (ID = 1389694) Television — Grundig Radio- Zauberspiegel 437/p (3)

Zauberspiegel 437/p ; Grundig Radio- (ID = 1389695) Television — Grundig Radio- Zauberspiegel 437/p (3)

Zauberspiegel 437/p ; Grundig Radio- (ID = 785136) Television — Grundig Radio- Zauberspiegel 437/p (1)

Zauberspiegel 437/p ; Grundig Radio- (ID = 93350) Television — Grundig Radio- Zauberspiegel 437/p (1)

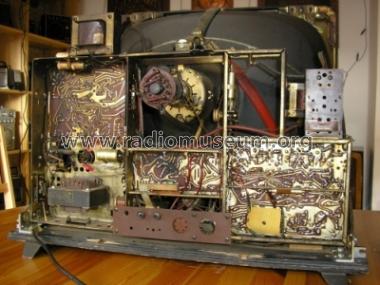

Chassisrückseite (ohne Gehäuse)

Zauberspiegel 437/p ; Grundig Radio- (ID = 93351) Television — Grundig Radio- Zauberspiegel 437/p (1)
Rückseite

Zauberspiegel 437/p ; Grundig Radio- (ID = 93352) Television — Grundig Radio- Zauberspiegel 437/p (1)

Zauberspiegel 437/p ; Grundig Radio- (ID = 93353) Television — Grundig Radio- Zauberspiegel 437/p (1)

Zauberspiegel 437/p ; Grundig Radio- (ID = 93354) Television — Grundig Radio- Zauberspiegel 437/p (1)

Zauberspiegel 437/p ; Grundig Radio- (ID = 93355) Television — Grundig Radio- Zauberspiegel 437/p (1)

Zauberspiegel 437/p ; Grundig Radio- (ID = 93356) Television — Grundig Radio- Zauberspiegel 437/p (1)

Zauberspiegel 437/p ; Grundig Radio- (ID = 93357) Television — Grundig Radio- Zauberspiegel 437/p (1)

Zauberspiegel 437/p ; Grundig Radio- (ID = 93358) Television — Grundig Radio- Zauberspiegel 437/p (1)

Zauberspiegel 437/p ; Grundig Radio- (ID = 785131) Television — Grundig Radio- Zauberspiegel 437/p (1)

Zauberspiegel 437/p ; Grundig Radio- (ID = 785133) Television — Grundig Radio- Zauberspiegel 437/p (1)
Chassis mit Platinen

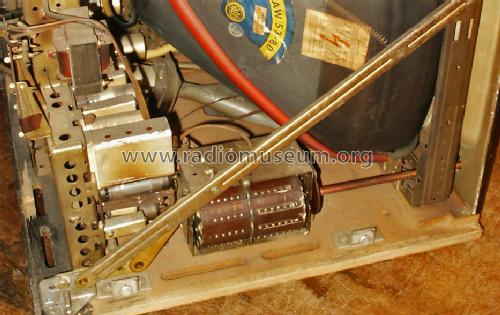

Zauberspiegel 437/p ; Grundig Radio- (ID = 785139) Television — Grundig Radio- Zauberspiegel 437/p (1)

Zauberspiegel 437/p ; Grundig Radio- (ID = 785140) Television — Grundig Radio- Zauberspiegel 437/p (1)
Zeilenendstufe ohne Käfig

Zauberspiegel 437/p ; Grundig Radio- (ID = 785142) Television — Grundig Radio- Zauberspiegel 437/p (1)
Ablenkplatine

Zauberspiegel 437/p ; Grundig Radio- (ID = 785143) Television — Grundig Radio- Zauberspiegel 437/p (1)
defekte Hochspannungsspule

Zauberspiegel 437/p ; Grundig Radio- (ID = 785144) Television — Grundig Radio- Zauberspiegel 437/p (1)

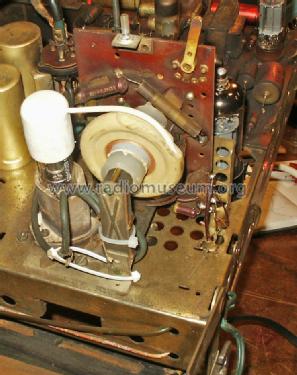

Zeilentrafo mit ersetzter Hochspannungsspule

Zauberspiegel 437/p ; Grundig Radio- (ID = 1218868) Television — Grundig Radio- Zauberspiegel 437/p (2)
Fernsehempfanger, Herbert Lennartz, 1960

Zauberspiegel 437/p ; Grundig Radio- (ID = 1388247) Television — Grundig Radio- Zauberspiegel 437/p (2)

Zauberspiegel 437/p ; Grundig Radio- (ID = 1388248) Television — Grundig Radio- Zauberspiegel 437/p (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
19

Valves / Tubes
PCC88 PCF80 EF80 EF80 EF80 EF80 EF80 PL83 EBF89 PABC80 PL82 ECL80 EC92 EC92 PCL82 PL36 PY83 DY86 AW53-80

Main principle
Superheterodyne (common)

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Wooden case

from Radiomuseum.org
Model: Zauberspiegel 437/p - Grundig Radio-Vertrieb, RVF,

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
590 x 500 x 470 mm / 23.2 x 19.7 x 18.5 inch

Notes
437P (Print) mit Leiterplatten. Keine Linearitätsspule, reiner VHF-Empfänger, Serienheizung.

Author
Model page created by Michael Schott. See "Data change" for further contributors.
