• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1957/1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 99560

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

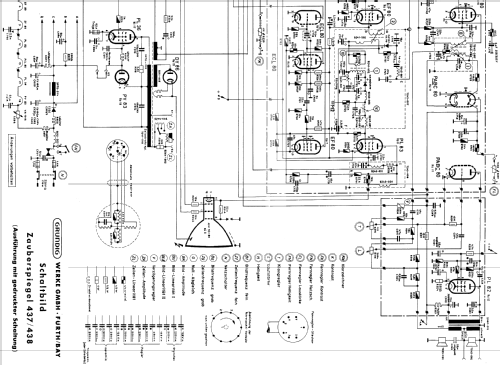

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• PCC88 PCF80 EF80 PL83 EBF89 PABC80 PL82 ECL80 EC92 EC92 PCL82 PL36 PY83 DY86 AW53-80

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel 438 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 540 x 470 mm / 24.4 x 21.3 x 18.5 inch

• Notes
• EF80 mehrfach vorhanden, Wellenbereiche Band I & III. Das Gerät 438 ist handverdrahtet und als 438/p mit Platinen bestückt. Siehe auch Modelle 437 und 437/p.

• Price in first year of sale
• 1,015.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Literature/Schematics (1)
• Lange, Schaltungen der Funkindustrie

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
