• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1959/1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 101190

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

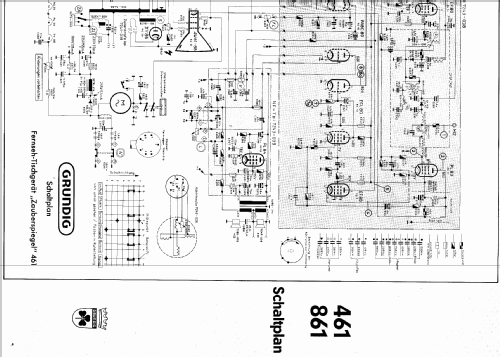

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• AW61-88

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel 461 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 650 x 560 x 430 mm / 25.6 x 22 x 16.9 inch

• Notes
• Technische Daten wie Zauberspiegel 453, jedoch mit 61-cm-Bildröhre.

• Net weight (2.2 lb = 1 kg)
• 83 kg / 182 lb 13.1 oz (182.819 lb)

• Price in first year of sale
• 1,148.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
