• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1959/1960

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 101200

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 25

• Valves / Tubes
• AW53-88

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

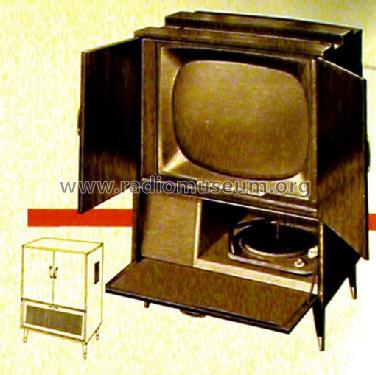

• Model: Zauberspiegel 53K10 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 595 x 875 x 440 mm / 23.4 x 34.4 x 17.3 inch

• Notes
• Technische Daten wie Zauberspiegel 53K1, jedoch Standgerät auf Beinen mit verschließbaren Türen.
  Phono-Chassis = Telefunken TW501.

• Net weight (2.2 lb = 1 kg)
• 65 kg / 143 lb 2.7 oz (143.172 lb)

• Price in first year of sale
• 1,495.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
