• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1959/1960

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 102359

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

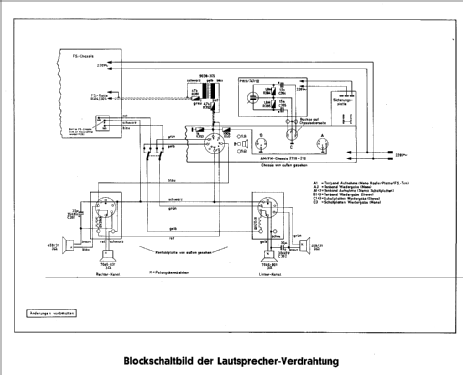

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel 53M3 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1230 x 920 x 510 mm / 48.4 x 36.2 x 20.1 inch

• Notes
• Technische Daten und Ausstattung wie Zauberspiegel 53M2, jedoch anderes Gehäuse.

• Net weight (2.2 lb = 1 kg)
• 100 kg / 220 lb 4.2 oz (220.264 lb)

• Price in first year of sale
• 1,975.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Mentioned in

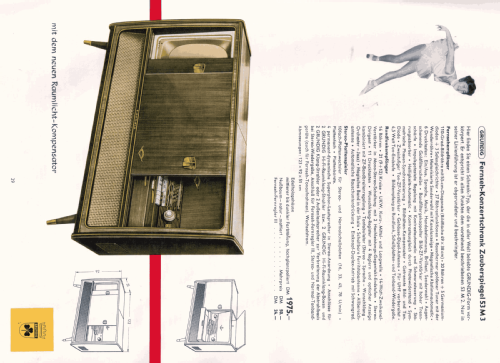

• -- Original prospect or advert

• Author
• Model page created by Michael John. See "Data change" for further contributors.
