• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1960/1961

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 102830

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC88 PCF80 EF80 EF80 PABC80 EF184 EF80 EF80 EF80 PCL84 PL82 PCL82 PC92 PY88 PL36 DY86 AW53-88

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel 53S25 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 700 x 920 x 380 mm / 27.6 x 36.2 x 15 inch

• Notes

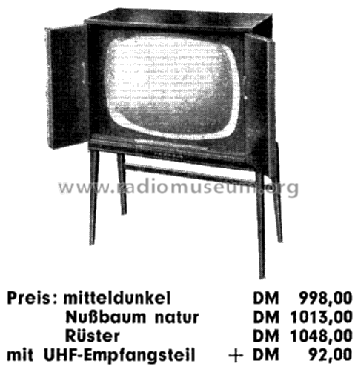

• Das Standgerät 53S25 ist für den Einbau eines UHF- Tuners vorbereitet. Technische Daten wie Zauberspiegel 53T25, jedoch Standgerät auf Beinen mit verschließbaren Umklapptüren.

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Price in first year of sale
• 998.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
