• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1961/1962

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 100605

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PCC88 PCF80 PC86 PC93 PC92 EF80 EF183 EF183 PABC80 ECH84 PCL84 PCL82 PL84 PY88 PL36 DY86 AW59-90

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel 59K10 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 700 x 975 x 465 mm / 27.6 x 38.4 x 18.3 inch

• Notes

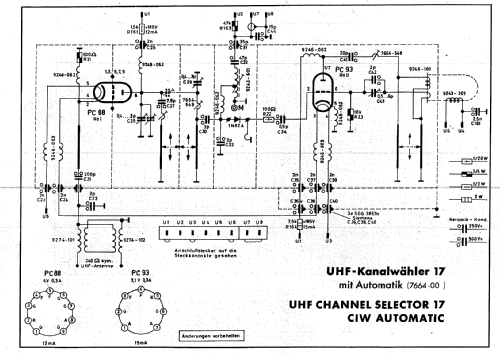

• Das Standgerät 59K10 ist optional mit dem UHF- Tuner Typ 17 ausgestattet. Es sind nicht alle Röhren gelistet. Fernseh-Chassis = Zauberspiegel 59K4;
  Rundfunk-Chassis mit 10 Röhren, 7/10 Kreise, LMKU, Stereo-NF-Verstärker mit 2× 7,5 W;;
  Phono-Chassis = Perpetumm-Ebner PE66.

• Net weight (2.2 lb = 1 kg)
• 65 kg / 143 lb 2.7 oz (143.172 lb)

• Price in first year of sale
• 1,698.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Author
• Model page created by a member from A. See "Data change" for further contributors.
