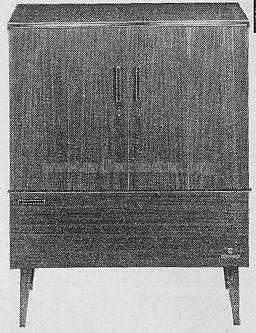

Zauberspiegel 65K10 wie TV T468 Rfk Ch= HF25 + NF2

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

  • Year
  • 1965/1966
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 110821
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

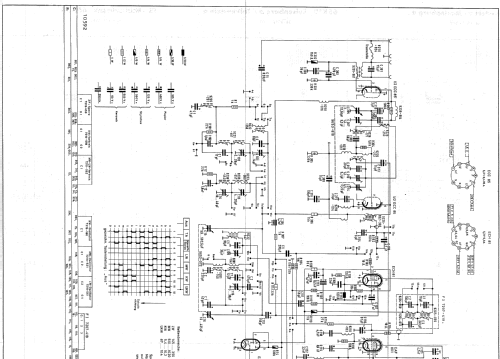

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Zauberspiegel 65K10 wie TV T468 Rfk Ch= HF25 + NF2 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 750 x 1000 x 440 mm / 29.5 x 39.4 x 17.3 inch
  • Notes
  • Fernseh-Chassis = T668;
    Rundfunk-Chassis = HF25 und NF25;
    Phono-Chassis = Dual 1011. Stereo-Decoder 4 oder 5 nachrüstbar.
  • Net weight (2.2 lb = 1 kg)
  • 70 kg / 154 lb 3 oz (154.185 lb)
  • Price in first year of sale
  • 1,998.00 DM
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
