• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1965/1966

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 111882

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel 65K50 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1820 x 780 x 470 mm / 71.7 x 30.7 x 18.5 inch

• Notes

• Grundig Zauberspiegel 65K50.
  Fernseh-Chassis = Zauberspiegel T668;

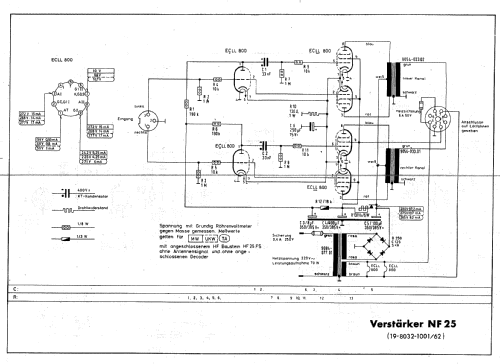

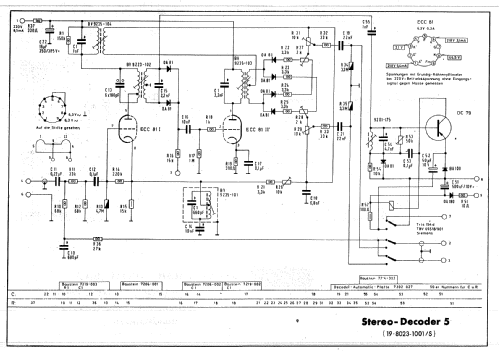

  Rundfunk-Chassis = HF25 und NF25, Stereo-Decoder 5 eingebaut;
  Phono-Chassis = Dual 1009.
  Anschluss für Tonband
  Gehäuse in mitteldunkel hochglanzpoliert oder Nußbaum mattiert.

• Net weight (2.2 lb = 1 kg)
• 100 kg / 220 lb 4.2 oz (220.264 lb)

• Source of data
• Handbuch VDRG 1965/1966

• Mentioned in

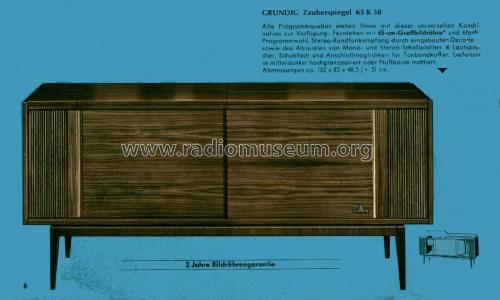

• -- Original prospect or advert (Grundig Katalog 1965 - Schaufenster - Seite 6)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
