• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1964/1965

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 109997

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel K460 Ch= T460+HF10+NF10 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1580 x 890 x 460 mm / 62.2 x 35 x 18.1 inch

• Notes

• Fernseh-Chassis = Zauberspiegel T460;

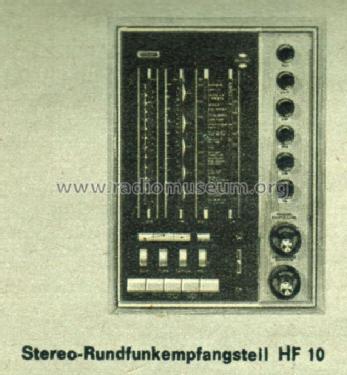

  Rundfunk-Chassis = HF10 und NF10, Stereo-Decoder 4 oder 5 nachrüstbar;
  Phono-Chassis = Dual 1009.

  Anschluss für Kabelfernbedienung Fernregler II (2).

• Net weight (2.2 lb = 1 kg)
• 110 kg / 242 lb 4.7 oz (242.291 lb)

• Price in first year of sale
• 3,400.00 DM

• Source of data
• Handbuch VDRG 1964/1965

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
