• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 126755

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

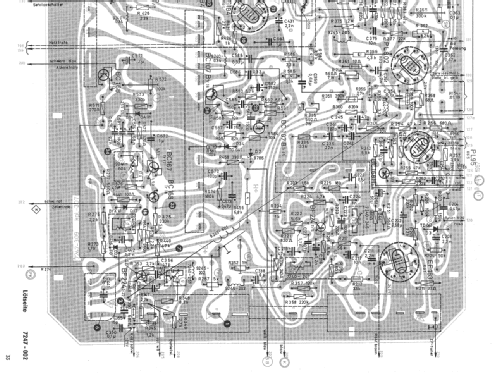

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• EF183 EF184 EF184 EF184 PL802 EF184 PCH200 PL95 PC92 PL805 PCF802 ECC82 PY88 PL504 PY500 PL509 GY501 A63-11X

• Number of Transistors
• 23

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel T1000 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Notes
• Gleiches Chassis wie T 800, jedoch mit Bildröhre A63-11X. Kanäle 2-12 (47...230MHz); 21-60 (470...790MHz).

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Hilmer Grunert. See "Data change" for further contributors.

• Other Models

• Here you find 6208 models, 5433 with images and 4203 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
