• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1963/1964

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 108324

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

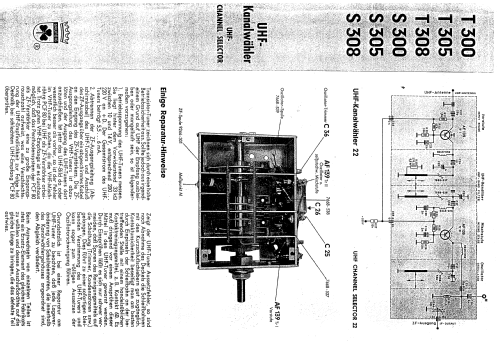

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• A59-11W or A59-12W

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

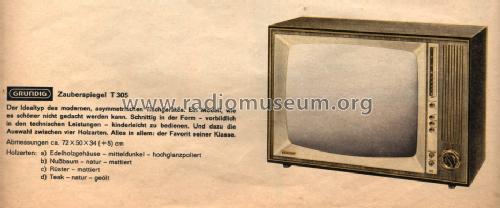

• Model: Zauberspiegel T305 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 720 x 500 x 340 mm / 28.3 x 19.7 x 13.4 inch

• Notes
• VHF/UHF; technische Daten wie Zauberspiegel T300, jedoch asymetrisches Gehäuse.

• Net weight (2.2 lb = 1 kg)
• 34 kg / 74 lb 14.2 oz (74.89 lb)

• Price in first year of sale
• 1,128.00 DM

• Source of data
• Handbuch VDRG 1963/1964

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
