• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1964/1965

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 109906

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

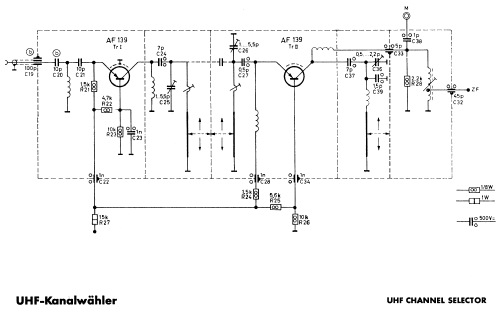

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EF85 EL95 PFL200 PCH200 PCL85 ECH84 PL500 PY88 DY86 AW59-91

• Number of Transistors
• 9

• Semiconductors
• AF139 AF139 AF109 AF106 AF106 AF121 AF121 AF121 AC126 OA90 AA111 OA91 V40C1 OA161 BY100

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel T400 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 500 x 350 mm / 25.2 x 19.7 x 13.8 inch

• Notes

• VHF/UHF. Anschraubbeine oder Fußgestell gegen Mehrpreis (32,- bzw. 58,- DM).

  Siehe auch die Grundig Exportmodelle T400F und T400 CH-E

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Price in first year of sale
• 1,080.00 DM

• Source of data
• Handbuch VDRG 1964/1965

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
