• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1966/1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 112454

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

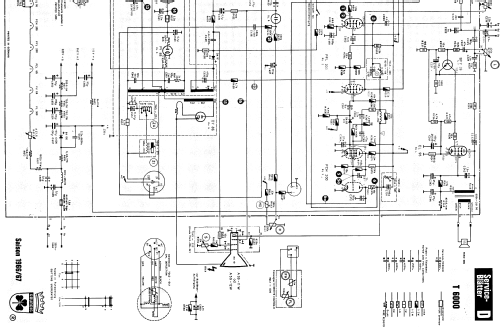

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• A59-11W

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zauberspiegel T6000 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 650 x 500 x 260 mm / 25.6 x 19.7 x 10.2 inch

• Notes
• VHF/UHF. Anschraubbeine oder Fußgestell gegen Mehrpreis.

• Net weight (2.2 lb = 1 kg)
• 32 kg / 70 lb 7.8 oz (70.485 lb)

• Source of data
• Handbuch VDRG 1966/1967

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
