• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1965/1966

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 110818

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

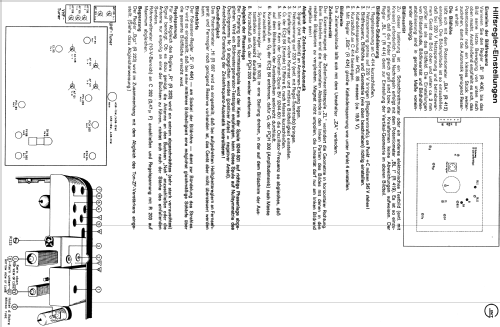

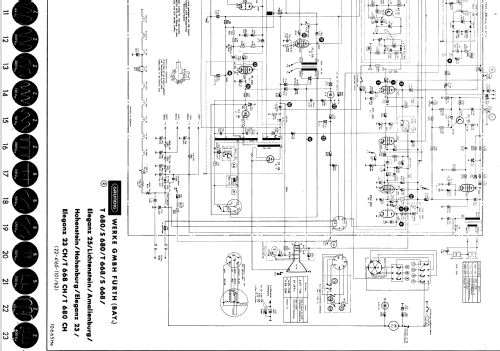

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EF85 PFL200 EL95 PCH200 PCL85 ECH84 PL500 PY88 DY86 A65-11W

• Number of Transistors
• 9

• Semiconductors
• AF109 AF106 AF106 AF139 AF139 AF121 AF121 AF121 AC126

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

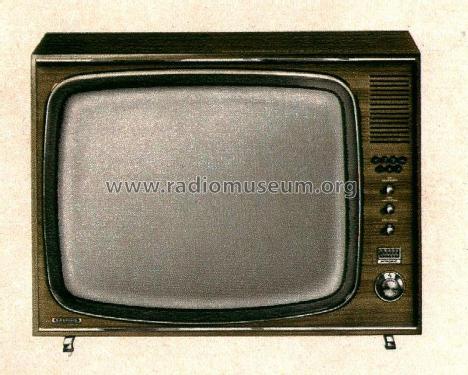

• Model: Zauberspiegel T668 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 730 x 570 x 270 mm / 28.7 x 22.4 x 10.6 inch

• Notes

• Grundig 65-cm TV-Tischgerät Modell Zauberspiegel T 668.
  VHF-und UHF-Tuner
  Monomat de Luxe (6 Programme)
  Anschluß für Fernregler V
  Gehäuse in mitteldunkel hochglanzpoliert oder Nußbaum mattiert.

• Net weight (2.2 lb = 1 kg)
• 41 kg / 90 lb 4.9 oz (90.308 lb)

• Source of data
• Handbuch VDRG 1965/1966

• Mentioned in
• -- Original prospect or advert (Grundig Katalog 1965 - Schaufenster - Seite 6)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
