• Country
• Spain

• Manufacturer / Brand
• Guibernau, Salvador; Barcelona

• Year
• 1964

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 323147

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• unknown_Tube unknown_Tube EF183 EF183 EF184 PCL84 ECH81 PCF80 ECC82 PL500 PY88 DY87 PCL85 PCF80 EF80 PCL86 AW59-90

• Number of Transistors

• Semiconductors
• OA210 OA70 OA81 OA85

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: T-67 [23"] - Guibernau, Salvador; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 535 x 700 x 210 mm / 21.1 x 27.6 x 8.3 inch

• Notes

• Radio Guibernau, Televisor modelo T-6 (23")

  TV B/W 23" con selector rotativo de VHF

  Altavoz elíptico 6" o 6x10" segun comanda
  Toma de antena 200 Ohms
  Preparado para adaptar sintonizador de UHF con dial frontal

• Mentioned in

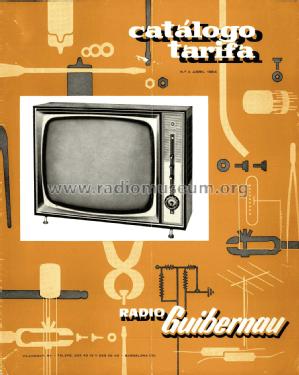

• Catálogo Radio Guibernau 1964

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Josh Toreno. See "Data change" for further contributors.
