M-5-A1
Gulbransen Co.; Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Gulbransen Co.; Chicago
- Year
- 1933 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 168880
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); 1 AF stage(s); Anode bend detection
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

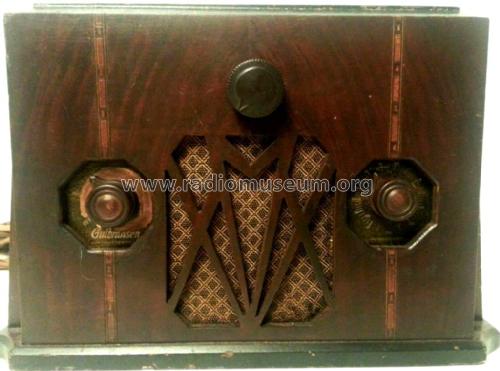

- Model: M-5-A1 - Gulbransen Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 298 x 198 x 162 mm / 11.7 x 7.8 x 6.4 inch
- Notes
- Wood with marquerty Inlay.
- Source of data
- Machine Age to Jet Age II
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
