• Country
• United States of America (USA)

• Manufacturer / Brand
• Gulf Tire & Supply Company; Pittsburgh (PA)

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130427

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50B5 35W4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Bakelite case

• from Radiomuseum.org

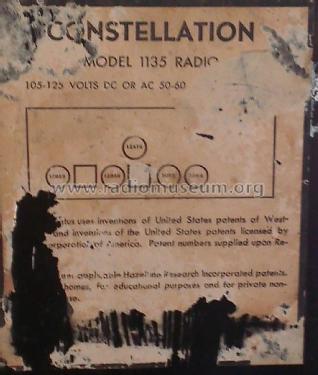

• Model: Constellation 1135 - Gulf Tire & Supply Company;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 11 x 7.125 x 6.25 inch / 279 x 181 x 159 mm

• Notes

• Gulf Tire & Supply Company, Constellation 1135; built-in antenna, 35 watts power consumtion.

  Note: This model was manufactured by Westinghouse. See Westinghouse model H-147 for schematic.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
