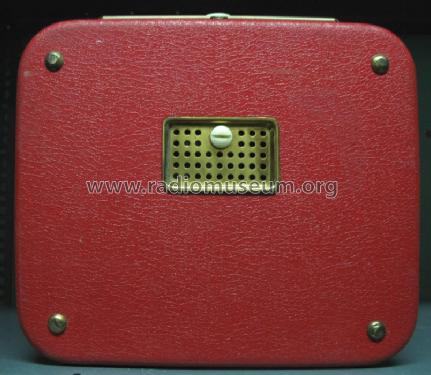

Mambó (Mambo) M5

• Country
• Hungary

• Manufacturer / Brand
• Budapesti Rádiótechnikai Gyár (BRG)

• Year
• 1958

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 92682

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF86 ECC85 EL84 EM80

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Mambó M5 - Budapesti Rádiótechnikai Gyár

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 345 x 180 x 295 mm / 13.6 x 7.1 x 11.6 inch

• Notes
• Halbspurgerät, 9,5cm/s, Frequenzgang 100-9000 Hz, Dynamic besser als 40 dB. Licence Stuzzi.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Price in first year of sale
• 3,300.00 HUF

• Source of data
• Radio es Televizio Vevö Keszülekek, 1958-59

• Literature/Schematics (4)
• Villamos Tömegcikk Árjegyzék, 1958.

• Author
• Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
