- Country
- Germany
- Manufacturer / Brand
- Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark
- Year
- 1949/1950
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 2311
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superhet with RF-stage; ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage and/or dry batteries / 6/12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Auto-Super [1949] - Hagenuk N&K, Hanseatische App.
- Dimensions (WHD)
- 250 x 200 x 160 mm / 9.8 x 7.9 x 6.3 inch
- Notes
- Price in first year of sale
- 580.00 DM
- Source of data
- Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb

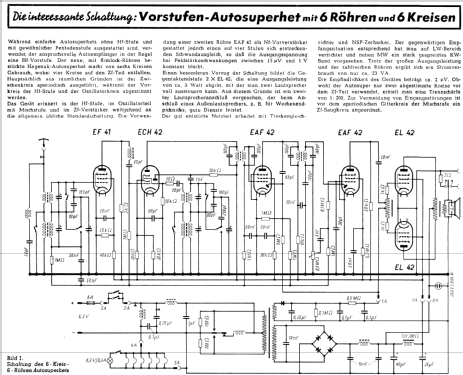

- Circuit diagram reference
- Lange-Nowisch
- Mentioned in
- Funkschau (4907)
