Nordmark 158WL

• Country
• Germany

• Manufacturer / Brand
• Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark

• Year
• 1935–1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2283

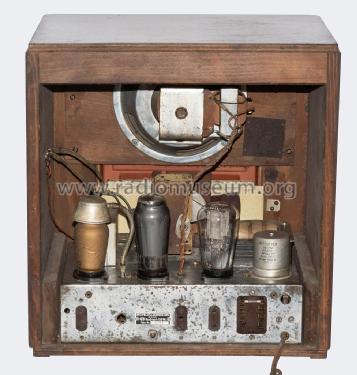

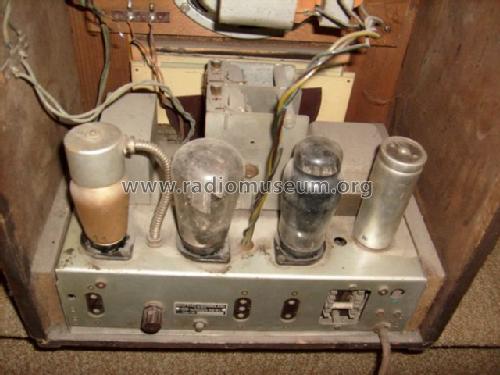

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• AF7 AL1 AZ1

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Nordmark 158WL - Hagenuk N&K, Hanseatische App.

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 364 x 385 x 257 mm / 14.3 x 15.2 x 10.1 inch

• Notes
• KW=20-60 m; Bandfilter [573].

• Price in first year of sale
• 158.00 RM +

• Source of data
• Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Radio-Zentrale Prohaska 1936/37

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
