• Country
• Germany

• Manufacturer / Brand
• Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark

• Year
• 1980 ??

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 204999

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Batteries (any type) / 110; 220/ 24 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

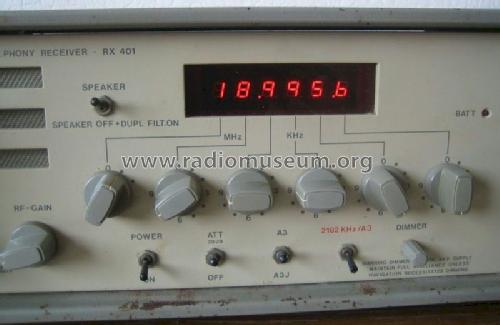

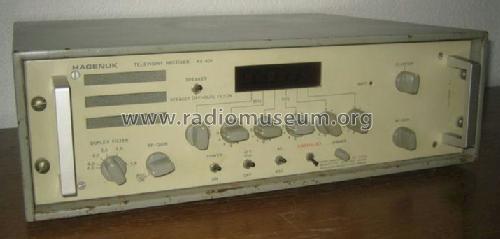

• Model: Telephony Receiver RX 401 - Hagenuk N&K, Hanseatische App.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 510 x 160 x 450 mm / 20.1 x 6.3 x 17.7 inch

• Notes
• Hagenuk Telephony Receiver RX 401;
  100 kHz - 30 MHz, Betriebsarten A3 & A3J, ZF: 63.078 + 5 MHz, 100 Hz Einstell- & Ablesegenauigkeit.
  Die Frequenz 2182 kHz ist separat schaltbar. Im Empfangsbereich zwischen 1,6 MHz und 4,2 MHz (einstellbar) unterdrückt ein Duplex-Filter das Empfangssignal um mehr als 35 dB.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
