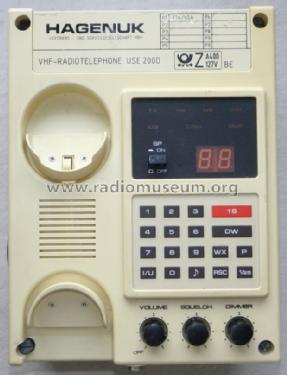

VHF-Radiotelephon UKW-Sprechfunkanlage USE 200 D
Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark
- Country
- Germany
- Manufacturer / Brand
- Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark
- Year
- 1980 ??
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 241519
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Batteries / addl. power jack / 24 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: VHF-Radiotelephon UKW-Sprechfunkanlage USE 200 D - Hagenuk N&K, Hanseatische App.
- Dimensions (WHD)
- 220 x 290 x 130 mm / 8.7 x 11.4 x 5.1 inch
- Notes
-
Seefunkgerät, 55 internationale Kanäle und 10 Privatkanäle. Frequenzbereich 156 - 162 MHz, Sendeleistung 25 W/1 W, Frequenzmodulation. Zweikanalüberwachung (jeweiliger Arbeitskanal und Kanal 16).
Zulassungs-Nr. Z A400 127V BE.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
