4701GA
Halcyon Wireless; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Halcyon Wireless; London
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104926
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 110 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- AC/DC-set / 200-260 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4701GA - Halcyon Wireless; London
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- Console radiogram with record changer. Metal rectifier.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)

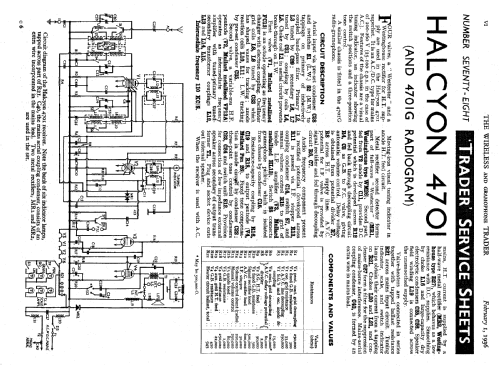

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (78)
- Literature/Schematics (2)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (695)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
