• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 357993

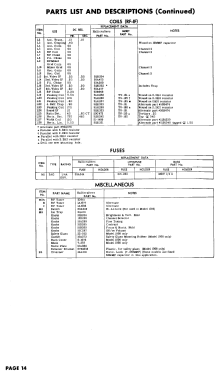

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6CB6 6J6 6CB6 6CB6 6CB6 6AL5 6CB6 6AU6 6AL5 6AV6 or 6SQ7 6AQ5 12AU7 or 6SN7GT 12AU7 or 6SN7GT 6S4 6SN7GT 6AU5GT or 6AV5GT 6W4GT 1B3GT 5U4G 5U4G 20CP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1000 Ch= W1000D - Hallicrafters, The; Chicago,

• Shape
• Console with any shape - in general

• Notes

• Hallicrafters model 1000 is a 20” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis W1000D, VHF tuner 1D961 and picture tube 20CP4.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 180, folder 7, dated 9-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
