10TS900B, M, T Ch= A2011
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 271430

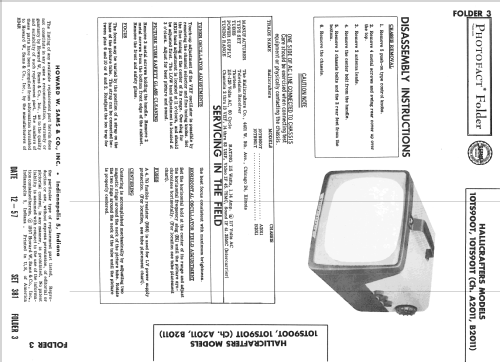

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: 10TS900B, M, T Ch= A2011 - Hallicrafters, The; Chicago,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Hallicrafters model 10TS900B,M,T is a 10" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis A2011, VHF tuner 1-3067 and picture tube 10ABP4.Selenium
rectifier.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 348 Folder 18-S date -1957)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 381 Folder 3 dated 12-57)
