• Year
  • 1952 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 355260

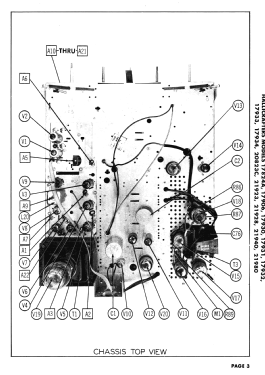

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 21
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 17824A - Hallicrafters, The; Chicago,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • Hallicrafters model 17824A is a 19” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 1D1055 and picture tube 19AP4B.



  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
